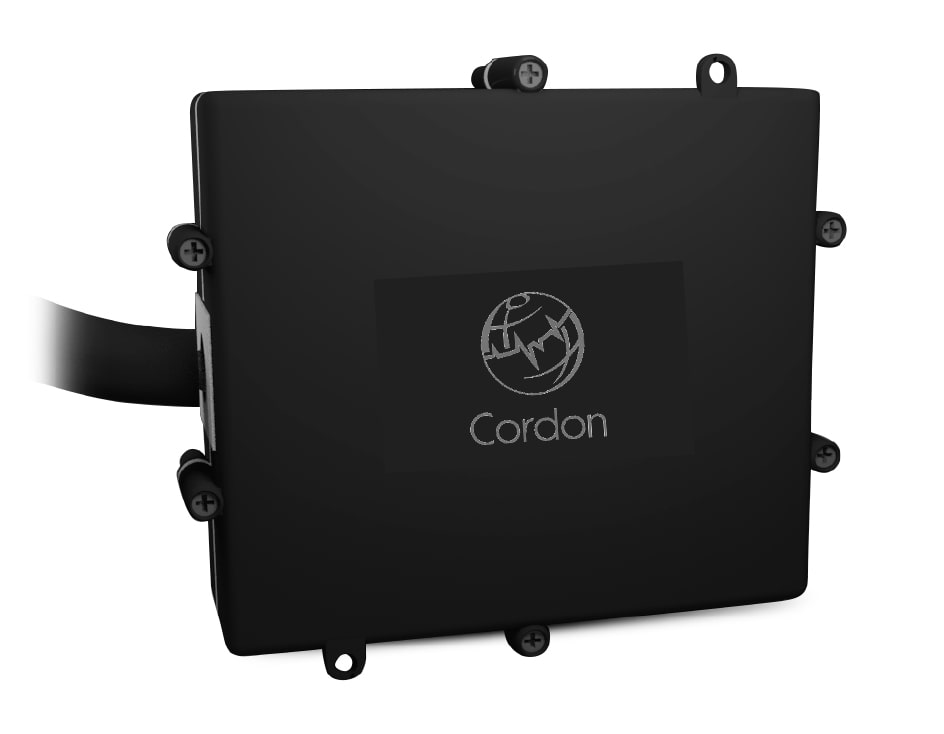

An iCAT certified AIS140 vehicle tracker with inbuilt IRNSS and GPS. This device comes with 3 Servers functionality, Accelerometer, and Gyroscope. In addition, It also has an inbuilt e-Sim slot which facilitates fulfilling firmware upgrades when needed.
| KEY FEATURES | |
| IO | Digital Input: 7, Digital Output: 2, Analog Input: 2, RS232: 1 |
|
GNSS & GPS Antenna
|
Internal High Gain Antenna
|
|
Indicators
|
3 LED's (Power, GSM, GPS)
|
| USB | 2.0 Micro USB |
|
SIM
|
eSIM |
|
Memory
|
80,000 Log Packets |
| POWER | |
| Voltage Range | 8-36V DC |
| Battery | 1000mAh Li-Po 3.7V |
| NAVIGATION | |
| GNSS | GPS, IRNSS, GLONASS, BeiDou, GALILEO, QZSS |
| Channels | 33 Tracking / 99 Acquisition Channel |
| Sensitivity | -165dBm |
| Velocity Accuracy | < 0.1m/s (within +/- 15% error) |
| Hot Start | < 1sec |
| Warm Start | < 30sec |
| Cold Start | < 31sec |
| CELLULAR NETWORK | |
| Band | 2G Band: 850/900/1800/1900 MHz |
| RF Power | Class 4 (2W@850/900 MHZ), Class 1 (1W@1800/1900 MHz) |
| Data | GPRS Multislot Class, Coding Scheme CS 1, 2, 3, 4 |
| Communication Protocol |
TCP / IP / UDP / FTP / HTTP/ SSL
|
| OPERATING ENVIRONMENT | |
| Working Current | Sleep mode < 25mA, Active mode < 200mA |
| Operating Temperature | -10° C to +75° C |
| Humidity | 5% to 95% non-condensing at +40°C |
