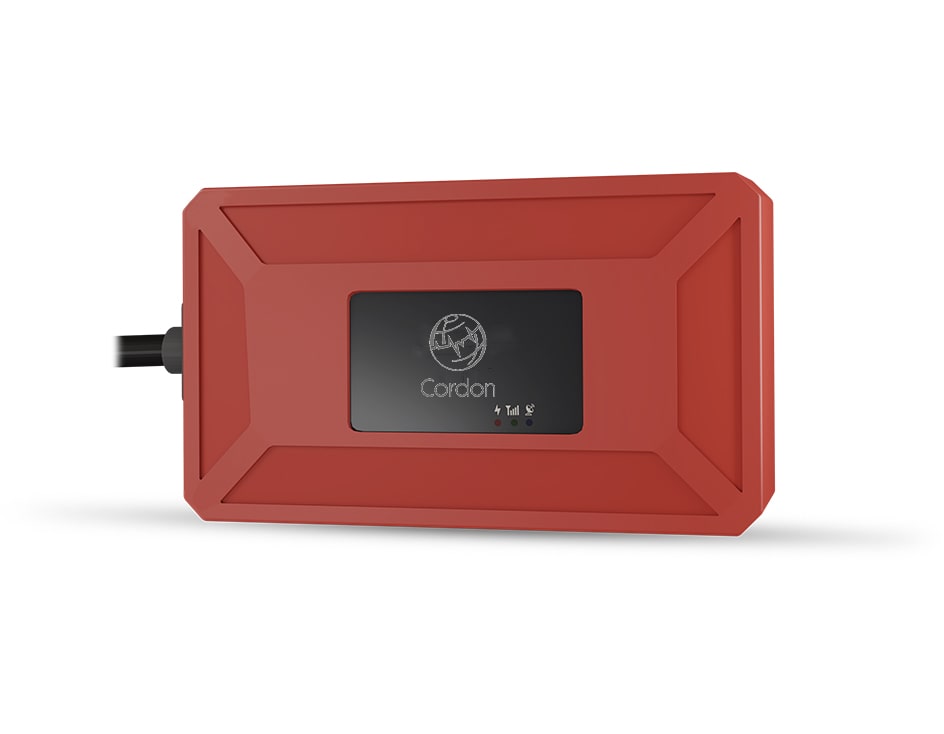

CT-101 is a compact vehicle tracker designed for all types of vehicles like personal cars, taxis & commercial transports. It has one digital input which can be used for ignition, door, or alarm button status monitoring & one digital output which can help in achieving vehicle remote immobilization.
| KEY FEATURES | |
| IO | DI: 1, DO: 1 |
|
GNSS & GSM Antenna |
Internal High Gain Antenna |
|
Indicators |
3 LED's (Charging, GSM, GNSS) |
|
SIM |
Micro SIM |
| USB |
2.0 Micro USB |
|
Memory |
12,000 Log Packets |
| POWER | |
| Voltage Range | 8-36V DC |
| Battery | 250mAh Li-Po 3.7V |
| NAVIGATION | |
| GNSS | GPS, GLONASS, BeiDou |
| Channels | 22 Tracking / 66 Acquisition Channel |
| Tracking Sensitivity | -161dBm |
|
Re acquisition Sensitivity |
-158dBm |
| Velocity | 0.1 m/s |
| Hot Start | < 1sec |
| Warm Start | < 30sec |
| Cold Start | < 35sec |
| CELLULAR NETWORK | |
| Band | 2G Band: 850/900/1800/1900MHz |
| RF Power | Class 4 (2W@850/900MHz), Class 1 (1W@1800/1900MHz) |
| Data | GPRS: Multislot Class 12 |
| Coding Scheme | CS 1, 2, 3, 4 |
| OPERATING ENVIRONMENT | |
| Working Current | Sleep mode < 5mA, Active mode < 100mA |
| Operating Temperature |
-20 °C to +60 °C (With Battery), -30 °C to +80 °C
(Without Battery) |
| Humidity |
5% to 95% non-condensing at +40 °C |
